Gradually receding into the past the classic 15.6-inch laptops, and are replaced by more mobile counterparts. Today especially popular displays with a diagonal of 13 or 14 inches. In addition, to cater to, frankly, spoiled the modern users, manufacturers strive to make the device more functional, eg, by adding the possibility to transform.
Well, what brand is best known for its hybrid models? Of course, Lenovo! This time, under the Sight, came very entertaining novelty – Lenovo ThinkPad Yoga 14, which combines the versatility and durability of Yoga line segment ThinkPad. Furthermore, the model supplemented good 14-inch display, a comfortable keyboard, and a capacious battery filling latest generation Broadwell.
Design of Lenovo ThinkPad Yoga 14

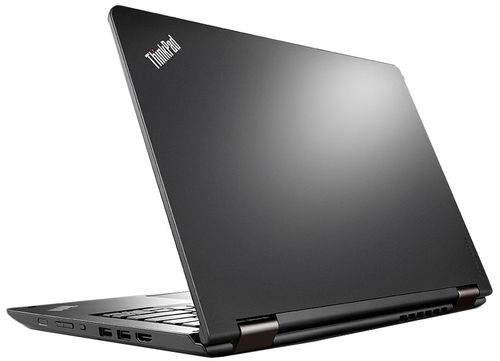

Let’s start with the fact that the housing is made of magnesium alloy, is incredibly durable and, therefore, a very high quality. The surface – matt black, not prone to a lot of fingerprints and dust accumulation. The only decoration is a company logo cap manufacturer in the top left corner.

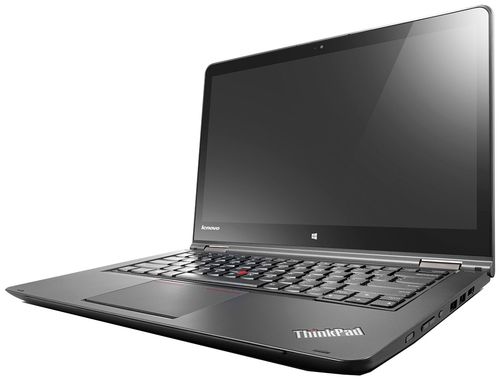

The display has a glossy surface and a fairly narrow frame around the perimeter. In the upper part moved webcam and the bottom – the button Windows. The full-sized keyboard makes an impression very comfortable, not for nothing that the ThinkPad line is considered ideal for extended typing. In the middle of the keyboard unit, you can see the red trackpoint and below – a large touchpad.

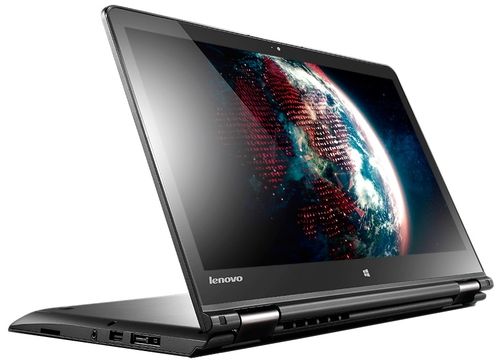

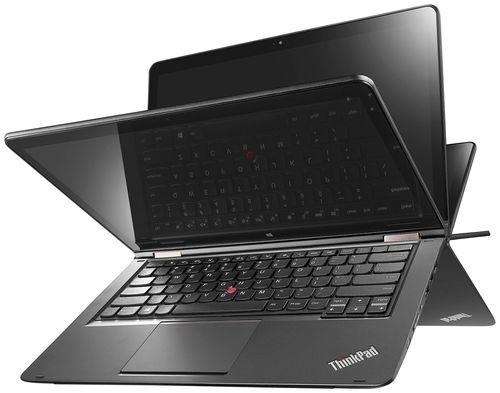

The upper part is connected to the bottom by means of two metal loops. By the way, the last engineers pay attention, because of their reliability depends largely on the usability of a hybrid device in different modes: a laptop, tablet, console and presentations. Thus, the classic notebook model involves working with a keyboard; If you rotate the screen 360 degrees to its “back” to the bottom of the device, turn the tablet; mode console can be achieved in the case, if you set the keyboard buttons to the surface, and to activate a presentation, you need to install the gadget so that it looked like a tent.
By the way, the build quality is excellent, during the transformation, there are no suspicious noises such as squeaks. Furthermore, no gaps in the apparatus, it is not subject to deformation, it does not bend in any mode. It is possible to upgrade, and this fact certainly please fans upgrade your device. So to get to the guts of laptop have to unscrew the nine screws. Under the hood, the user gets access to the hard drive and RAM, you can also clean the fan.
Finally, we note Overall Lenovo ThinkPad Yoga 14. Its length is 338 mm, width – 238 mm, and thickness – 21 mm. Velikovat Weight – 1.9 kg. Thus, the device is convertible 4-in-1 to obtain a relatively heavy, which casts doubt on the feasibility of using it in tablet mode because the handle is almost 2 kg – that still pleasure. No more comments on the appearance of the gadget we did not have.
Display, sound, and webcam of Lenovo ThinkPad Yoga 14
Lenovo ThinkPad Yoga 14 is a 14-inch screen, whose resolution is 1920×1080 pixels. Outset that his glossy surface that readily collects fingerprints. In addition, anti-glare display quality is poor, so comfortable to work in the sun at the user will fail.
Brightness and contrast can hardly be counted among the advantages of the screen, rather, they show averages. So, the maximum brightness is 305 cd / m2, light relatively evenly (83%) corresponds to the sRGB scheme is equal to 79% and AdobeRGB slightly less – 58%. These characteristics are, of course, is not suitable for professional tasks, but for the ordinary daily work they are sufficient. Matrix IPS allows you to enjoy excellent viewing angles which do not distort the picture, no matter from what angle to look at it. Color reproduction is good, the general background turns warm, and the picture as a whole – quite vivid and realistic.
Also commendable touch the display surface. The screen supports up to 10 simultaneous touches and is characterized by the excellent reaction: commands are executed at lightning speed, so there is no need to repeat them twice.
On the side of the bevel, the laptop can see two small slits, which are hidden under the speakers. The sound, of course, is not the highest level, yet there is a lack of bass. Nevertheless, a good volume, and it has a maximum distortion. In general, for everyday use that is enough, but you can connect headphones, thereby improving the quality of acoustics.
Resolution webcam is 1 megapixel. It is clear that to make a normal picture with it will not work, but video-calling capabilities webcam, in general, is enough.
Keyboard and Touchpad of Lenovo ThinkPad Yoga 14
The legendary keyboard AccuType is the hallmark line ThinkPad. Of course, such a success that it enjoys an ulterior motive. The keypad island type, its rounded square button at the bottom and are marked in white. They have a short stroke. Also, the manufacturer provides one-level lighting, adjustable combination [Fn] + [Space].
By the 14-inch form factor Numpad offline, and it has a positive effect on the keys they are quite large, but at the same time accurate. So, for example, [Enter] made single-row, and both keys [Shift] – great to not get on them, you should still try. Changed its location a key [Fn], as can be seen, now it is the most extreme in the bottom left corner. His dimensions please pointer unit manufacturers usually downplay its significance, expressing this modest size, and here, on the contrary, all four large arrows. In general, the keyboard is ideal for the long print run.
Separately want to mention an interesting feature called «Lift’N’Lock», which is present in some of the other models of the line ThinkPad, for example, in the laptop Lenovo ThinkPad Yoga S1. Its principle of operation is very simple: when the keyboard is at an angle of 270 degrees, the key is recessed in the surface and are blocked due to the automatic extension of the frame. Thus achieves two objectives: first, exclude the possibility of accidental operation, and secondly, it seems as if actually hold in your hands the tablet and not the convertible device.
In the middle of the keyboard is the red trackpoint, often accompanied notebooks Lenovo. This additional input device has excellent sensitivity, it helps to control the cursor. The same can be said about the touchpad, which is situated clearly below the space bar. The touchpad is very big, it has clear boundaries and slightly rough surface. The pointing device supports various multi-touch gestures, such as dragging, scrolling, etc. Physical keys, he does not possess, but when dealing with a joystick, you can use the upper part, as a precaution marked in red. It consists of three buttons: left and right, simulating mouse buttons, and the average used for scrolling.
Performance of Lenovo ThinkPad Yoga 14
Filling any device, from smartphones to laptops – that’s exactly what the first thing a potential buyer draws attention. Lenovo ThinkPad Yoga 14 (20DM003NRT) runs on Windows 8.1 64-bit. Transformer got ULV-processor dual-core Intel Core i7-5500U architecture Broadwell. Its minimum frequency of 2.4 GHz, but with Turbo Boost it can be increased up to 3 GHz. CPU is made on 14-nm process technology and has 4 MB cache in the third level, and its TDP does not exceed 15 watts. In addition, the processor supports multi-threading Hyper-Threading, which allows you to simultaneously handle four threads.
An integrated graphics card Intel HD Graphics 5500 supports DirectX 11.2 and OpenCL 2.0. It allows you to deal with any challenges that users face every day. For more complex calculations, there is a discrete NVIDIA GeForce 840M processor with 2 GB of internal memory standard, DDR3. He received a module for video processing PureVideo HD, and also supports Optimus to automatically switch between integrated and discrete graphics cards. To test the playability we launched several games to give the following results: Tomb Raider with a native resolution on the ultra-high settings are shown just 15-18 frames per second, Evolve with a resolution of HD to go with medium 23-25 fps.
The amount of RAM in the device is 8 GB DDR3-1600 MHz standard and is the maximum amount. The Transformer provides a hybrid drive. To store the information used by the hard disk capacity of 1 TB and a spindle speed of 5,400 revolutions per second. Additionally there is SSD-cache 16 GB, which provides faster boot system.
Ports and Communications of Lenovo ThinkPad Yoga 14

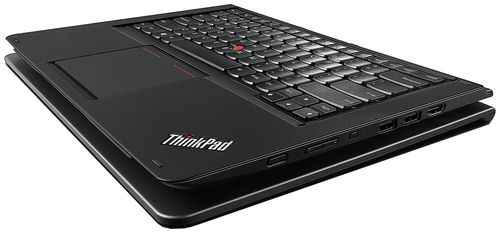

The set of interfaces, in general, fairly typical for a laptop. For example, on the right side you can see the two-port USB 3.0, a digital video output HDMI, and a number of physical buttons: volume rocker, power button, and button lock the screen orientation.

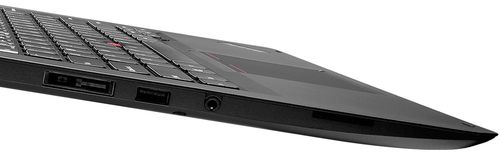

The left side has a port USB 2.0, which may further charge mobile devices even when the notebook is turned off; memory card reader 4-in-1 (SD / MMC / SDHC / SDXC); connector for charging the device in combination – Lenovo OneLink port to connect a docking station. Also, the left is a combo jack for microphone and headphones.
The front and rear are empty. As to wireless communications, in this regard, nothing extraordinary: Bluetooth 4.0 and Wi-Fi 802.11 b / g / n. By the way, note the presence of built-in sensors, namely the gyroscope and light sensor.
Battery and heating of Lenovo ThinkPad Yoga 14
Lenovo ThinkPad Yoga 14 is a non-removable lithium-polymer battery capacity of 3785 mAh (56 Wh). In fact, the battery behaves very well, in fact, it is enough for a whole day. Thus, in the read mode gadget remains viable up to 12 hours in the Web-surfing with the included Wi-Fi – about 6 hours, and more complex tasks, such as toys, discharge it somewhere in 3 hours. Of course, it does not record figures, but they are no worse than those that can offer analogs from other brands.
During the launch of the device heats up games, and quite palpable. However, if, say, after gameplay immediately switch to surfing the web, cooling of internal components is virtually instantaneous, and it should be noted.
Conclusion of Lenovo ThinkPad Yoga 14
Well, in the family of transformers Lenovo has been refilled in the form of the laptop Lenovo ThinkPad Yoga 14. Its feature is the ability to be converted into one of the four modes: a laptop, tablet, console and presentation. Immediately, we note that in the tablet position, the device is useful only if you put it on my knees because for a long time to hold the weight of almost 2 kg – not pleasant. In principle, one can say that immodest weight, which does not have to be transported, is the biggest drawback of novelty. The rest of the special no comments. The gadget is made of metal, which makes it look stylish and concise. Its display, albeit weakly resists sunlight, but it has a wide viewing angle and nice looking resolution Full HD.
Keyboard AccuType, without exaggeration, is one of the best, so typing on it – a pleasure. Stuffing is a processor of the latest generation Intel Core i7-5500U and a good graphics card NVIDIA GeForce 840M, which can be used to run some of the toys. True, will play only a relatively little old game, but it is ranked as the shortcomings of the laptop would be wrong, because it is not positioned as a game. Price trends can hardly be called democratic because, in this configuration, it is about $ 1,400. But do not forget that in return you will get a unit 4-in-1, which will always be in the trend!
